Short Description
- 16× PoE + 3 Uplink Ports (2×Gigabit + 1×SFP Fiber)
- IEEE 802.3af/at Supported, 180W Total PoE Budget
- Smart VLAN & Extend Modes (Up to 220 Meters)
- 4KV Surge and ESD 8KV/6KV Protection
-
Durable Metal Housing for Long-Term Use
Shipping & Return
Cancellation Policy
- An order will instantly be canceled if the billing information is inaccurate or incomplete.
- If a customer doesn’t confirm his/her order within 48-hours of placement, the order will be marked as ‘discarded’.
- An order can only be canceled within 3 hours of placing the order.
Exchange Policy
- An item can only be exchanged in case of any defects with proof, within 2 days of delivery.
- An item will only be exchanged with an intact duplicate that doesn’t contain the same defects as the former.
- To exchange a purchased product, the customer will have to submit a request form with proof and details of the defected items and company will have full authority to decline the request depending upon the availability of the product.
Product Description
-

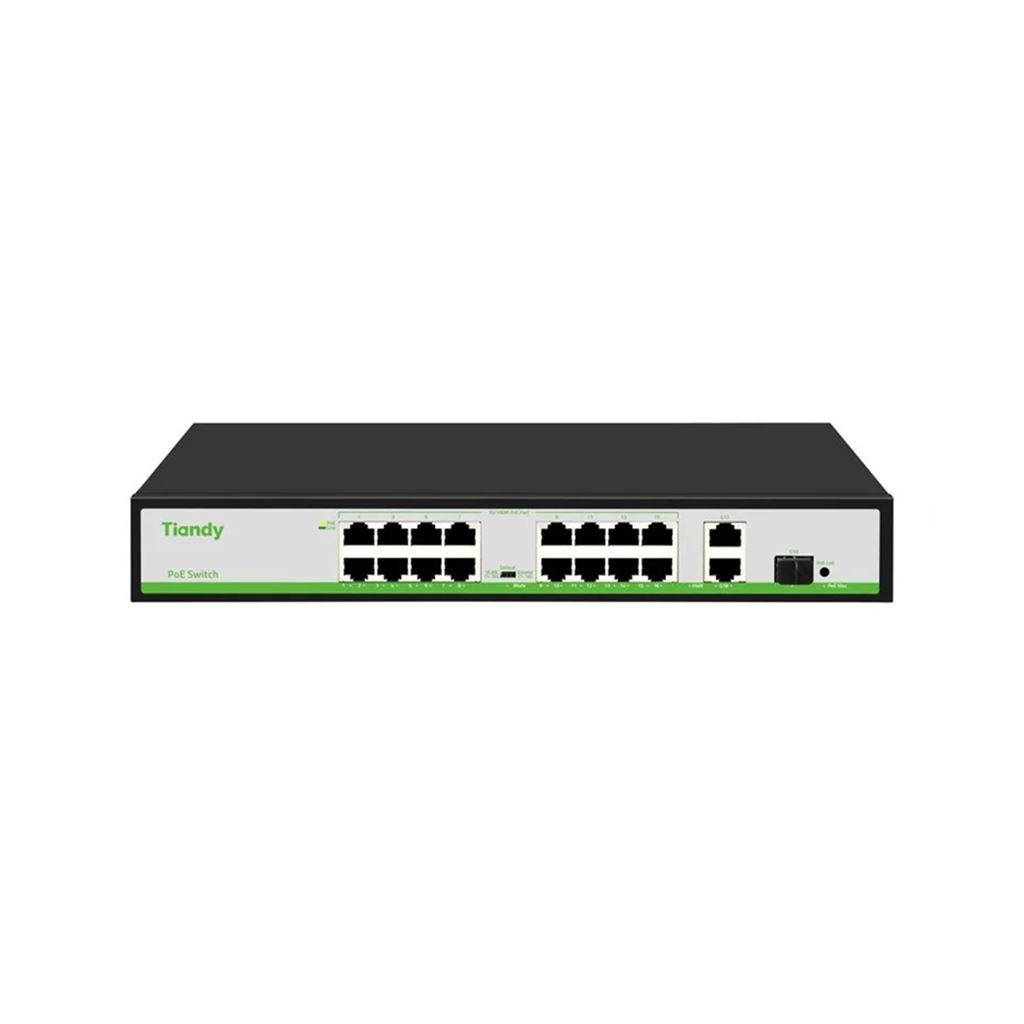

Versatile 19-Port PoE Network Design
Comes with 16×10/100 Mbps PoE ports, 2×Gigabit uplink ports, and 1×Gigabit SFP port, allowing a mix of wired and fiber connectivity for security and networking applications.
-
Strong PoE Power Delivery
Delivers DC 52V output with a 180W total PoE budget, supporting IEEE 802.3af (15.4W) and IEEE 802.3at (30W) standards for reliable power to multiple cameras or devices simultaneously.
-
Smart 3-Mode DIP Switching
One-key DIP switch lets users toggle between Default, VLAN, and Extend modes:
-
Default: All ports communicate normally.
-
VLAN: Isolates ports for security and prevents network congestion.
-
Extend: Extends transmission distance up to 220 meters at 10 Mbps.
-
High-Speed & Stable Performance
Provides 9.2 Gbps switching bandwidth, 6.84 Mpps throughput, and store-and-forward switching, ensuring smooth data flow and low-latency transmission.
-
Built-in AI Power Management & Protection
Prioritizes critical ports (1→16) and includes 4KV surge and ESD (8KV air / 6KV contact) protection for reliable, uninterrupted performance.
-
Professional-Grade Durability
Sturdy metal casing (320×207×45 mm) with LED status indicators for power, mode, and PoE status. Operates reliably from –10 °C to +50 °C, suitable for commercial, industrial, or CCTV environments.
Versatile 19-Port PoE Network Design
Comes with 16×10/100 Mbps PoE ports, 2×Gigabit uplink ports, and 1×Gigabit SFP port, allowing a mix of wired and fiber connectivity for security and networking applications.
Strong PoE Power Delivery
Delivers DC 52V output with a 180W total PoE budget, supporting IEEE 802.3af (15.4W) and IEEE 802.3at (30W) standards for reliable power to multiple cameras or devices simultaneously.
Smart 3-Mode DIP Switching
One-key DIP switch lets users toggle between Default, VLAN, and Extend modes:
-
Default: All ports communicate normally.
-
VLAN: Isolates ports for security and prevents network congestion.
-
Extend: Extends transmission distance up to 220 meters at 10 Mbps.
High-Speed & Stable Performance
Provides 9.2 Gbps switching bandwidth, 6.84 Mpps throughput, and store-and-forward switching, ensuring smooth data flow and low-latency transmission.
Built-in AI Power Management & Protection
Prioritizes critical ports (1→16) and includes 4KV surge and ESD (8KV air / 6KV contact) protection for reliable, uninterrupted performance.
Professional-Grade Durability
Sturdy metal casing (320×207×45 mm) with LED status indicators for power, mode, and PoE status. Operates reliably from –10 °C to +50 °C, suitable for commercial, industrial, or CCTV environments.
