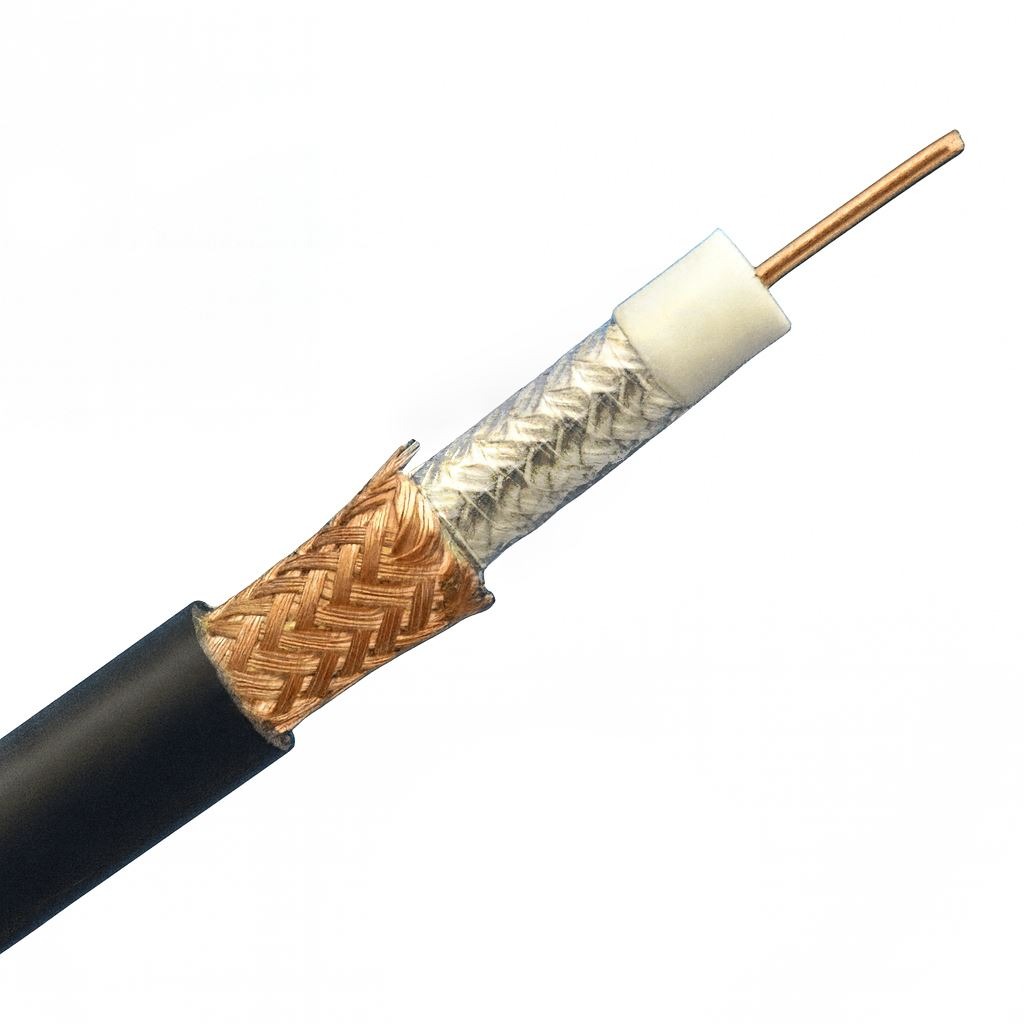

Short Description
- Bare Copper Conductor
- Dielectric Gas Injected Foamed Polythlene (FPC)
- Bonded Aluminium Sheath
- Bare Copper Braid
- Polyvinyl Chloride (PVC)
- Packaging 305 Meters
Shipping & Return
Cancellation Policy
- An order will instantly be canceled if the billing information is inaccurate or incomplete.
- If a customer doesn’t confirm his/her order within 48-hours of placement, the order will be marked as ‘discarded’.
- An order can only be canceled within 3 hours of placing the order.
Exchange Policy
- An item can only be exchanged in case of any defects with proof, within 2 days of delivery.
- An item will only be exchanged with an intact duplicate that doesn’t contain the same defects as the former.
- To exchange a purchased product, the customer will have to submit a request form with proof and details of the defected items and company will have full authority to decline the request depending upon the availability of the product.
Product Description
-
Inner conductor is 1.63 mm bare copper with ≥25% elongation, ≥150 N/mm² tensile strength, and ≥67 N dielectric adhesion.
-
Dielectric is gas-injected foamed polyethylene (7.11 mm) with 18 kV/mm strength and ≤4% shrinkage after 4 hrs at 115°C.
-
Thermal aging performance includes ≥30 min oxidative induction (ASTM D4565) and ≥70% retention after 14 days at 90°C.
-
First shield is bonded Al/PET tape (7.3 mm ±0.13 mm) with ≥18% overlap and ≤0.3 mm ovality.
-
Second shield is a 24x6 bare copper braid (7.9 mm ±0.15 mm) with 0.16 mm wires, ≥95% coverage, ≥6% elongation, and ≥180 N/mm² strength.
-
Outer sheath is odorless black PVC (10.03 mm ±0.1 mm) with ≥0.9 mm thickness and ≤43% excentricity.
-
Mechanical strength includes ≥13.8 MPa tensile strength, ≥250% elongation at break, and ≥50% retention after aging (UL 2556 & ASTM D573).
-
Compliance includes ≥2.5 kVrms spark test and ANSI/SCTE 88/2003 with ≤10 mm jacket shrinkage per 150 mm.
Inner conductor is 1.63 mm bare copper with ≥25% elongation, ≥150 N/mm² tensile strength, and ≥67 N dielectric adhesion.
Dielectric is gas-injected foamed polyethylene (7.11 mm) with 18 kV/mm strength and ≤4% shrinkage after 4 hrs at 115°C.
Thermal aging performance includes ≥30 min oxidative induction (ASTM D4565) and ≥70% retention after 14 days at 90°C.
First shield is bonded Al/PET tape (7.3 mm ±0.13 mm) with ≥18% overlap and ≤0.3 mm ovality.
Second shield is a 24x6 bare copper braid (7.9 mm ±0.15 mm) with 0.16 mm wires, ≥95% coverage, ≥6% elongation, and ≥180 N/mm² strength.
Outer sheath is odorless black PVC (10.03 mm ±0.1 mm) with ≥0.9 mm thickness and ≤43% excentricity.
Mechanical strength includes ≥13.8 MPa tensile strength, ≥250% elongation at break, and ≥50% retention after aging (UL 2556 & ASTM D573).
Compliance includes ≥2.5 kVrms spark test and ANSI/SCTE 88/2003 with ≤10 mm jacket shrinkage per 150 mm.
