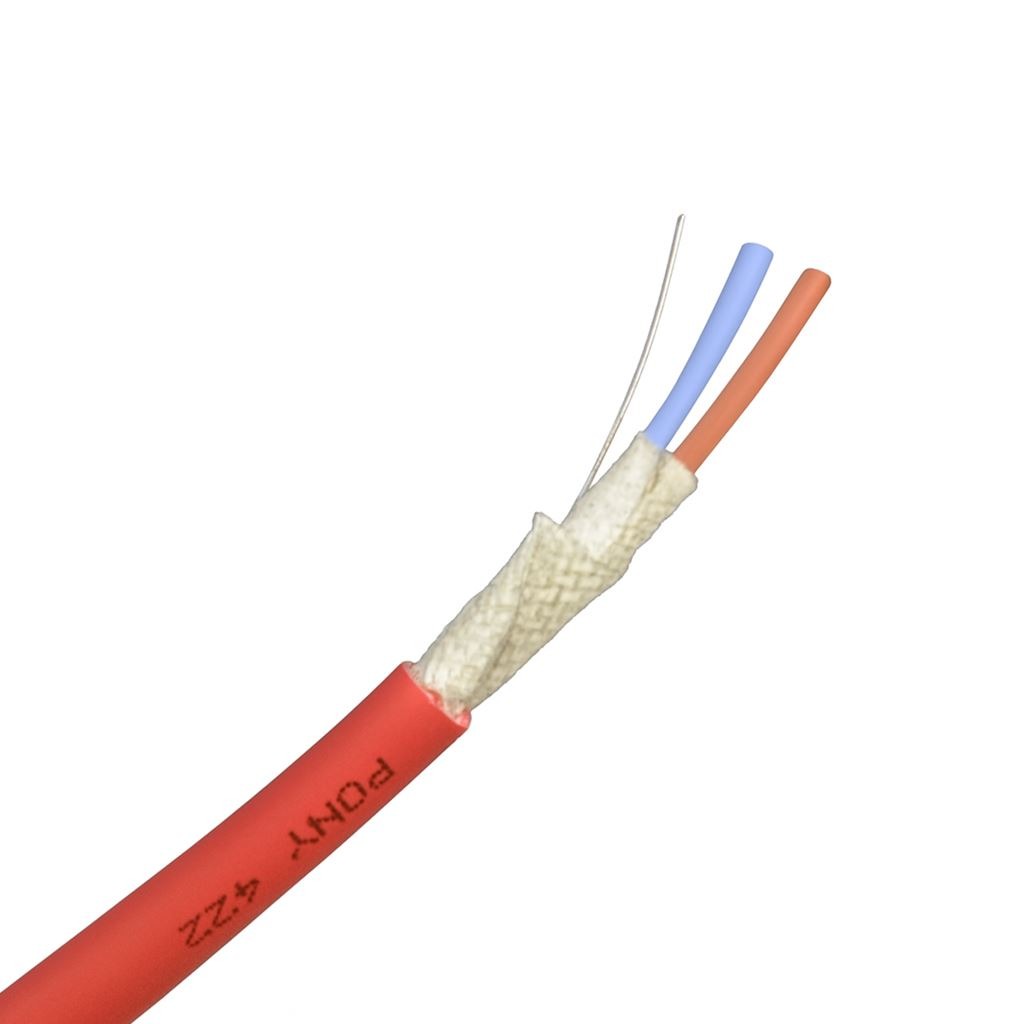

Pony Fire Alarm 2 Core Shielded Wire 2.5mm Sq PH120 42225
₨ 234,754
Coil of 305 Mtr.
Short Description
- Stranded Annealed Bare Copper Conductor
- Tinned Copper Drain Wire with Two Twisted Pairs
- Mica Tape Wrapped, Flame Retardant Design
- LSZH (Low Smoke Zero Halogen) Sheath
- Marking (Tag/Reel): 305m or 500m per Reel
- Packaging: 305 Meters
Shipping & Return
Cancellation Policy
- An order will instantly be canceled if the billing information is inaccurate or incomplete.
- If a customer doesn’t confirm his/her order within 48-hours of placement, the order will be marked as ‘discarded’.
- An order can only be canceled within 3 hours of placing the order.
Exchange Policy
- An item can only be exchanged in case of any defects with proof, within 2 days of delivery.
- An item will only be exchanged with an intact duplicate that doesn’t contain the same defects as the former.
- To exchange a purchased product, the customer will have to submit a request form with proof and details of the defected items and company will have full authority to decline the request depending upon the availability of the product.
Product Description
CONSTRUCTION
1. Conductor
-
Nos.: 2
-
Size: 1/1.78 mm
-
Material: Stranded Annealed Bare Copper
2. Insulation
-
Nos.: 2 (Brown / Blue)
-
Material: Silicone – E12
3. Drain Wire
-
Nos.: 1
-
Size: 1/0.8 mm
-
Material: Tinned Copper
4. Flame Barrier
-
Material: Mica Tape (enhanced fire resistance)
5. Screen
-
Material: Aluminium / Polyester Laminate
6. Sheath
-
Overall Diameter: 10.2 mm
-
Color: Red
-
Material: Low Smoke Halogen Free (LTS3)
CHARACTERISTICS
-
Rated Voltage: 450/750 V
-
Operating Temperature: –25 °C to +110 °C
-
Fire Resistance: 120 minutes (flame survival)
-
Conductor Resistance: 11.9 Ω/km
-
Capacitance (Core to Core – Brown/Blue): 89 pF/m
-
Capacitance (Conductor to Screen): 163 pF/m
-
Inductance: 0.74 µH/m
Nos.: 2
Size: 1/1.78 mm
Material: Stranded Annealed Bare Copper
Nos.: 2 (Brown / Blue)
Material: Silicone – E12
Nos.: 1
Size: 1/0.8 mm
Material: Tinned Copper
Material: Mica Tape (enhanced fire resistance)
Material: Aluminium / Polyester Laminate
Overall Diameter: 10.2 mm
Color: Red
Material: Low Smoke Halogen Free (LTS3)
Rated Voltage: 450/750 V
Operating Temperature: –25 °C to +110 °C
Fire Resistance: 120 minutes (flame survival)
Conductor Resistance: 11.9 Ω/km
Capacitance (Core to Core – Brown/Blue): 89 pF/m
Capacitance (Conductor to Screen): 163 pF/m
Inductance: 0.74 µH/m
