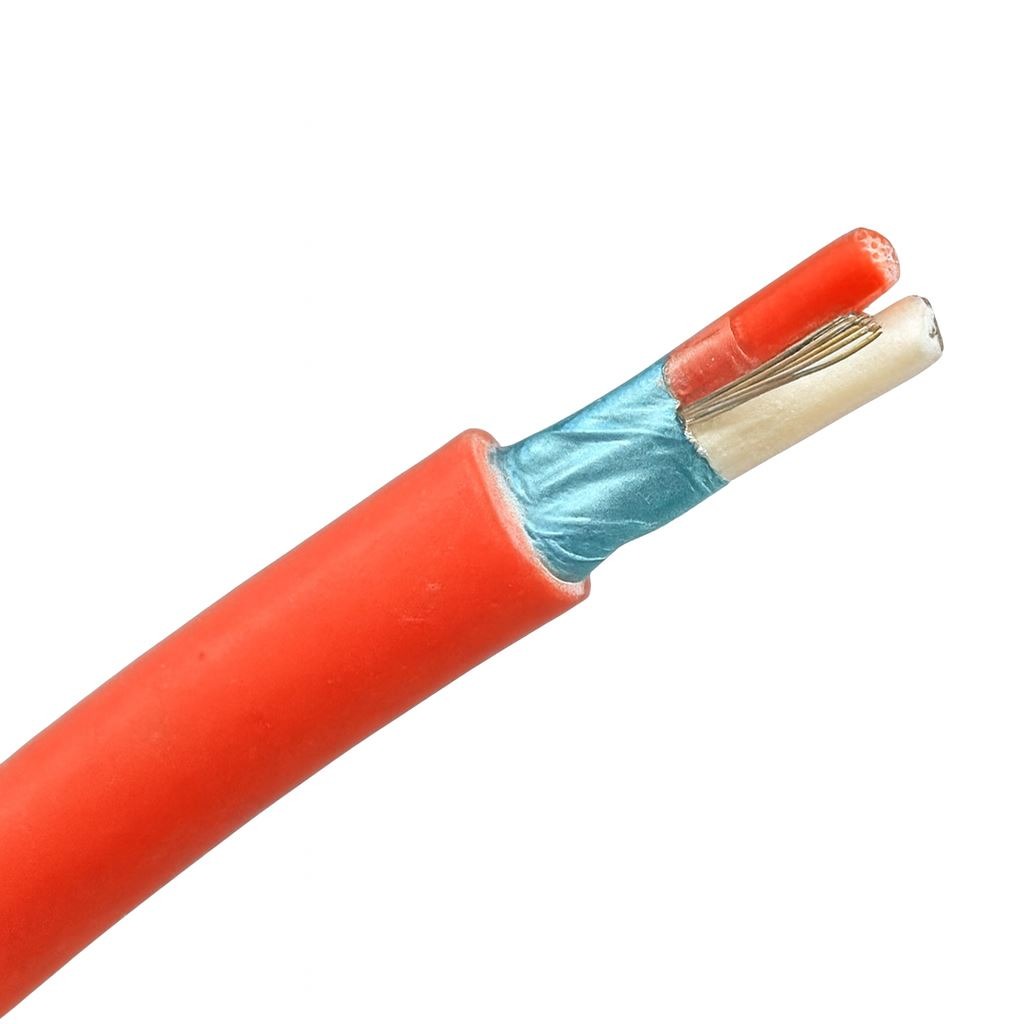

Pony Fire Alarm 2 Core Shielded Wire 2.5mm Sq PH 180 41225
₨ 489,269
Coil of 305 Meter
Short Description
- Tranded Annealed Copper Conductor
- Tinned Copper Drain Wire
- Two Twisted Wire
- Mica Tape Wrapped
- Flame Retardant
- LSZH Sheath
- Packaging 305 Meters
Shipping & Return
Cancellation Policy
- An order will instantly be canceled if the billing information is inaccurate or incomplete.
- If a customer doesn’t confirm his/her order within 48-hours of placement, the order will be marked as ‘discarded’.
- An order can only be canceled within 3 hours of placing the order.
Exchange Policy
- An item can only be exchanged in case of any defects with proof, within 2 days of delivery.
- An item will only be exchanged with an intact duplicate that doesn’t contain the same defects as the former.
- To exchange a purchased product, the customer will have to submit a request form with proof and details of the defected items and company will have full authority to decline the request depending upon the availability of the product.
Product Description
-
Conductors: Two stranded annealed copper wires (7/0.67 mm), insulated in red and white with LSZH compound (X-HF-110).
-
Drain wire: Tinned copper drain wire (7/0.25 mm) ensures grounding and shield continuity.
-
Fire barrier: Mica tape layer provides flame resistance with 180-minute survival time.
-
Shielding: Aluminum foil, polyester laminate, and tinned copper wire offer strong EMI protection.
-
Outer sheath: Red LSZH sheath (HFS-110-TP) with 11.0 mm overall diameter for safe, durable protection.
-
Voltage & temperature: Rated 450/750 V and performs from -25°C to +110°C.
-
Electrical values: Conductor resistance is 7.20 Ω/km; capacitance is 114 pF/m (core-to-core) and 208 pF/m (core-to-screen).
-
Inductance: 0.70 µH/m rating ensures stable signal performance in critical applications.
Conductors: Two stranded annealed copper wires (7/0.67 mm), insulated in red and white with LSZH compound (X-HF-110).
Drain wire: Tinned copper drain wire (7/0.25 mm) ensures grounding and shield continuity.
Fire barrier: Mica tape layer provides flame resistance with 180-minute survival time.
Shielding: Aluminum foil, polyester laminate, and tinned copper wire offer strong EMI protection.
Outer sheath: Red LSZH sheath (HFS-110-TP) with 11.0 mm overall diameter for safe, durable protection.
Voltage & temperature: Rated 450/750 V and performs from -25°C to +110°C.
Electrical values: Conductor resistance is 7.20 Ω/km; capacitance is 114 pF/m (core-to-core) and 208 pF/m (core-to-screen).
Inductance: 0.70 µH/m rating ensures stable signal performance in critical applications.
