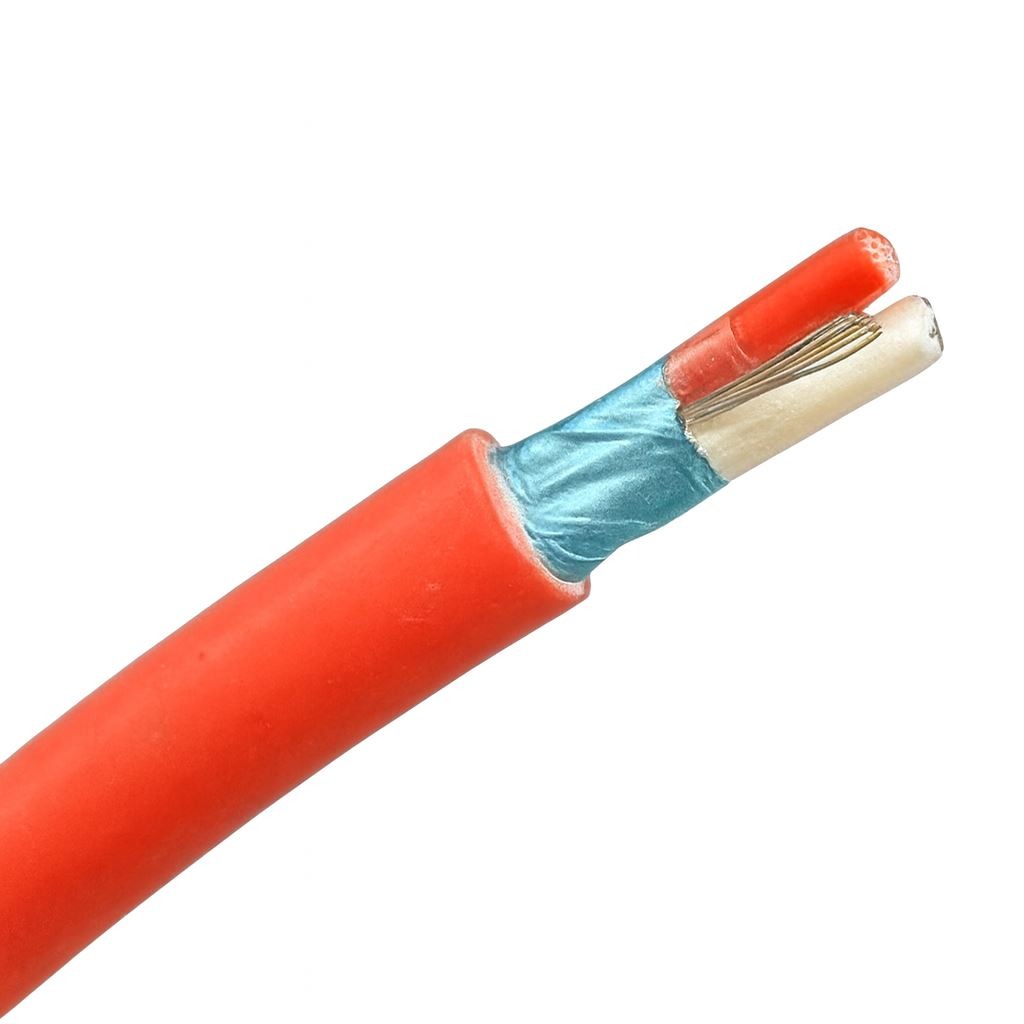

Pony Fire Alarm 2 Core Shielded Wire 1.5mm Sq PH180 41215
₨ 336,206
Coil of 305 Meter
Short Description
- Stranded Annealed Copper Conductor
- Tinned Copper Drain Wire
- Two Twisted Wire
- Mica Tape Wrapped
- Flame Retardant
- LSZH Sheath
- Packaging 305 Meters
Shipping & Return
Cancellation Policy
- An order will instantly be canceled if the billing information is inaccurate or incomplete.
- If a customer doesn’t confirm his/her order within 48-hours of placement, the order will be marked as ‘discarded’.
- An order can only be canceled within 3 hours of placing the order.
Exchange Policy
- An item can only be exchanged in case of any defects with proof, within 2 days of delivery.
- An item will only be exchanged with an intact duplicate that doesn’t contain the same defects as the former.
- To exchange a purchased product, the customer will have to submit a request form with proof and details of the defected items and company will have full authority to decline the request depending upon the availability of the product.
Product Description
-
Conductors: Two stranded annealed copper wires (7/0.52 mm), insulated with red and white flame-retardant LSZH compound (X-HF-110).
-
Drain wire: Includes a tinned copper drain wire (7/0.25 mm) for effective shielding continuity and grounding.
-
Fire barrier: Mica tape layer ensures flame resistance up to 180 minutes.
-
Shielding: Aluminum/polyester laminate screen protects against electromagnetic interference (EMI).
-
Outer sheath: Red LSZH sheath (HFS-110-TP) with a 10 mm overall diameter for safety and durability.
-
Voltage & temp rating: Rated 450/750 V and operates between -25°C to +110°C.
-
Electrical specs: Conductor resistance is 11.9 Ω/km; capacitance is 89 pF/m (core-to-core) and 163 pF/m (core-to-screen).
-
Inductance: Rated at 0.74 µH/m, supporting stable and reliable signal transmission.
Conductors: Two stranded annealed copper wires (7/0.52 mm), insulated with red and white flame-retardant LSZH compound (X-HF-110).
Drain wire: Includes a tinned copper drain wire (7/0.25 mm) for effective shielding continuity and grounding.
Fire barrier: Mica tape layer ensures flame resistance up to 180 minutes.
Shielding: Aluminum/polyester laminate screen protects against electromagnetic interference (EMI).
Outer sheath: Red LSZH sheath (HFS-110-TP) with a 10 mm overall diameter for safety and durability.
Voltage & temp rating: Rated 450/750 V and operates between -25°C to +110°C.
Electrical specs: Conductor resistance is 11.9 Ω/km; capacitance is 89 pF/m (core-to-core) and 163 pF/m (core-to-screen).
Inductance: Rated at 0.74 µH/m, supporting stable and reliable signal transmission.
