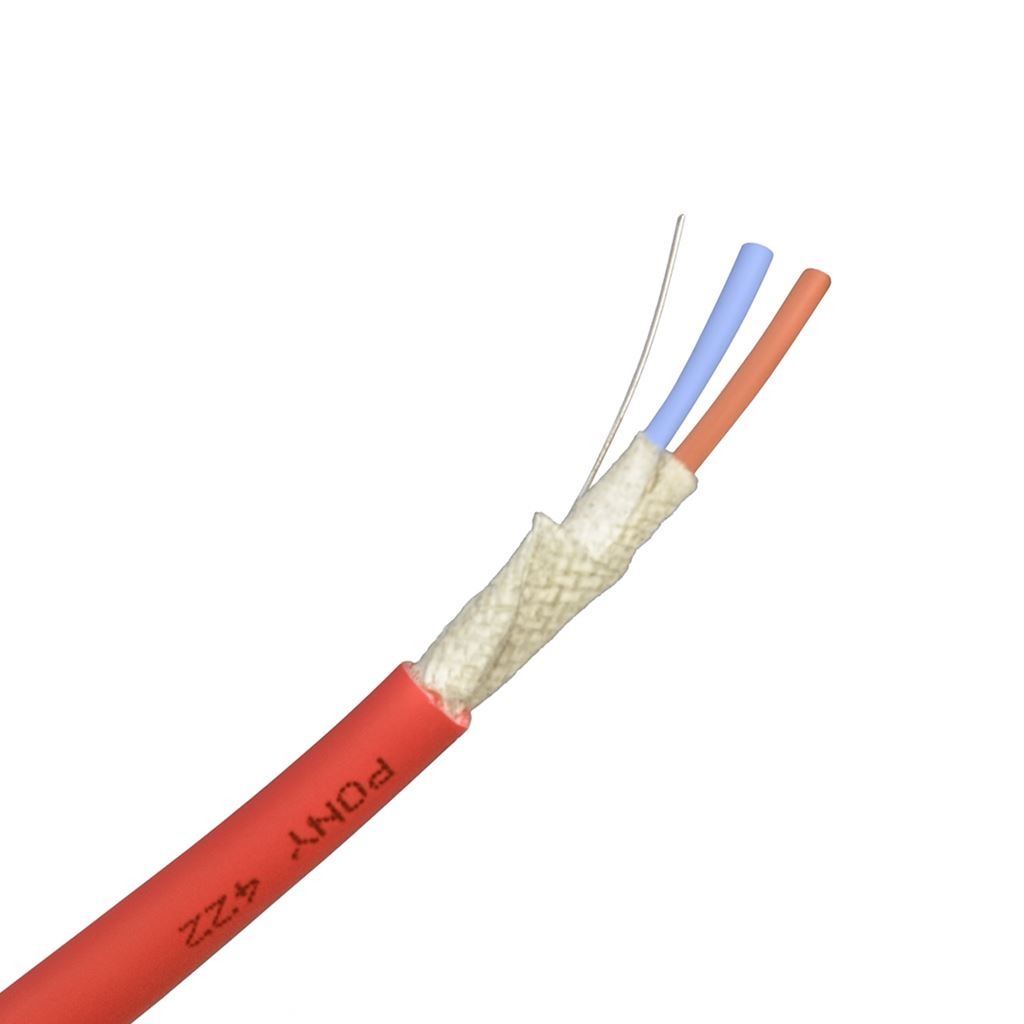

Pony Fire Alarm 2 Core Shielded Wire 1.5mm Sq PH120 42215
₨ 156,896
Coil of 305 Meter
Short Description
- Stranded Annealed Copper Conductor
- Tinned Copper Drain Wire
- Two Twisted Wire
- Mica Tape Wrapped
- Flame Retardant
- LSZH Sheath<
- Packaging 305 Meters
Shipping & Return
Cancellation Policy
- An order will instantly be canceled if the billing information is inaccurate or incomplete.
- If a customer doesn’t confirm his/her order within 48-hours of placement, the order will be marked as ‘discarded’.
- An order can only be canceled within 3 hours of placing the order.
Exchange Policy
- An item can only be exchanged in case of any defects with proof, within 2 days of delivery.
- An item will only be exchanged with an intact duplicate that doesn’t contain the same defects as the former.
- To exchange a purchased product, the customer will have to submit a request form with proof and details of the defected items and company will have full authority to decline the request depending upon the availability of the product.
Product Description
-
Conductors: Two stranded annealed bare copper wires (1/1.35 mm), insulated with silicon compound E12 in brown and blue colors.
-
Drain wire: Includes a single tinned copper drain wire (1/0.8 mm) for grounding and shielding continuity.
-
Fire protection: Features a mica tape flame barrier for up to 120 minutes of flame resistance.
-
Shielding: Aluminum/polyester laminate screen ensures effective electromagnetic interference (EMI) protection.
-
Outer sheath: Made of red Low Smoke Halogen-Free (LTS3) material with an overall diameter of 7.2 mm.
-
Voltage & temperature rating: Rated 450/750 V and operational between -25°C to +110°C.
-
Electrical performance: Conductor resistance is 11.9 Ω/km; capacitance is 89 pF/m (between conductors) and 163 pF/m (to screen).
-
Inductance: Rated at 0.74 µH/m, ensuring stable and efficient signal performance.
Conductors: Two stranded annealed bare copper wires (1/1.35 mm), insulated with silicon compound E12 in brown and blue colors.
Drain wire: Includes a single tinned copper drain wire (1/0.8 mm) for grounding and shielding continuity.
Fire protection: Features a mica tape flame barrier for up to 120 minutes of flame resistance.
Shielding: Aluminum/polyester laminate screen ensures effective electromagnetic interference (EMI) protection.
Outer sheath: Made of red Low Smoke Halogen-Free (LTS3) material with an overall diameter of 7.2 mm.
Voltage & temperature rating: Rated 450/750 V and operational between -25°C to +110°C.
Electrical performance: Conductor resistance is 11.9 Ω/km; capacitance is 89 pF/m (between conductors) and 163 pF/m (to screen).
Inductance: Rated at 0.74 µH/m, ensuring stable and efficient signal performance.
