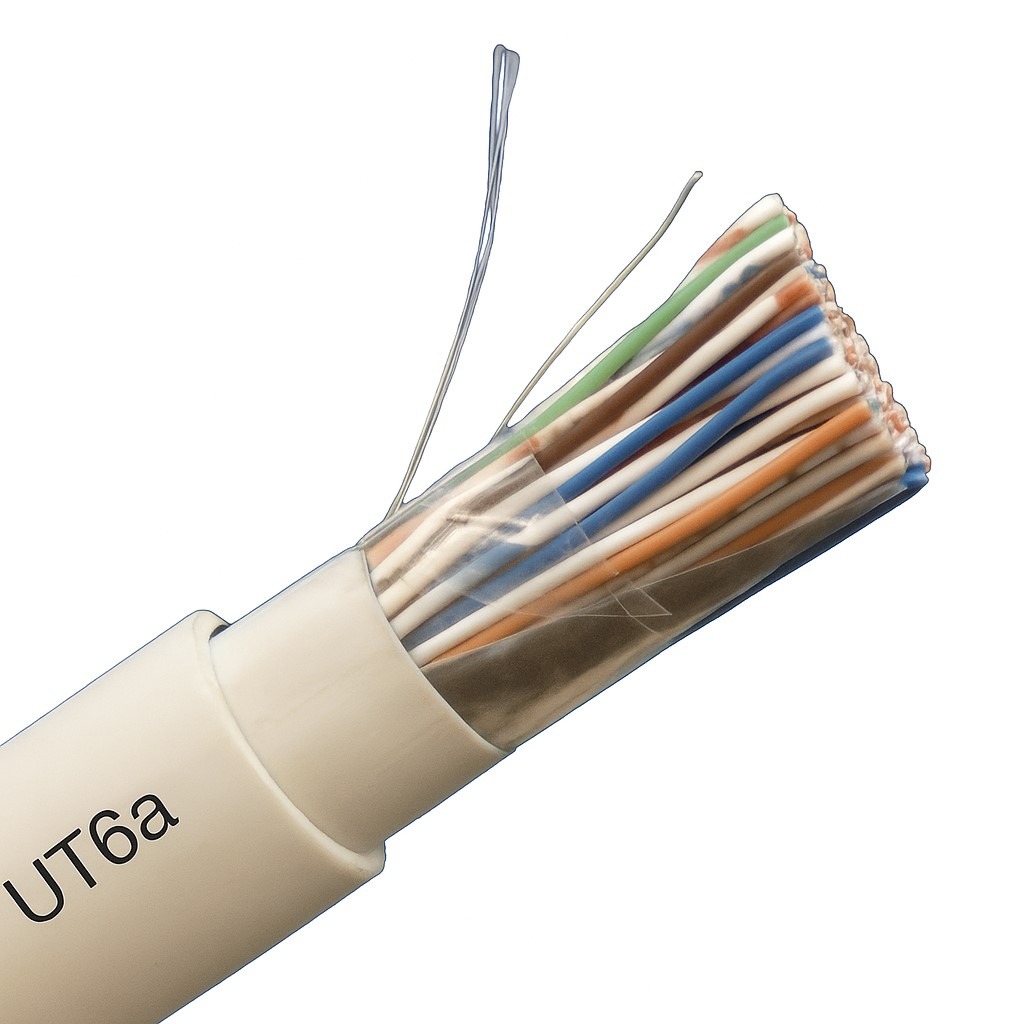

Short Description
- Copper 22AWG (0.6mm)
- 24 AWG Drain Wire (0.4mm)
- Two Twisted Wires
- Packaging 500 or 1000 Meters
- Nylon Rip Cord
- No Cross Talk
- All Pairs Can Be Used Simultaneously
- Aluminium Foil Wrapped
- Mylar Protection
Shipping & Return
Cancellation Policy
- An order will instantly be canceled if the billing information is inaccurate or incomplete.
- If a customer doesn’t confirm his/her order within 48-hours of placement, the order will be marked as ‘discarded’.
- An order can only be canceled within 3 hours of placing the order.
Exchange Policy
- An item can only be exchanged in case of any defects with proof, within 2 days of delivery.
- An item will only be exchanged with an intact duplicate that doesn’t contain the same defects as the former.
- To exchange a purchased product, the customer will have to submit a request form with proof and details of the defected items and company will have full authority to decline the request depending upon the availability of the product.
Product Description
Conductor
-
Nos. of Conductors: 100
-
Diameter: 0.60 mm (AQL +0.001 / -0.010)
-
Material: Solid Bare Copper
2. Insulation
-
Nos. of Insulated Cores: 100
-
Diameter: 1.0 mm (AQL ±0.10)
-
Material: General PVC Insulation
3. Shielding & Drain Wire
-
Shield (1): Spiral PP Color Tape (Spiraled Each 10 Pairs)
-
Shield (2): Spiral Mylar Transparent Shield
-
Shield (3): Spiral Aluminium Foil Shield
-
Drain Wire: 1 Solid Bare Copper, Diameter 0.40 mm (AQL +0.001 / -0.008)
4. Sheath
-
Overall Diameter: 12.1 mm (AQL ±0.20)
-
Material: Grey PVC Jacket with Rip-Cord
5. Electrical Characteristics
-
Conductor DC Resistance (20℃): ≤ 7.31 Ω / 100m
-
Insulation Resistance (20℃): ≥ 200 MΩ·m
6. Ratings
-
Rated Temperature: 60℃
-
Rated Voltage: 30 V
Nos. of Conductors: 100
Diameter: 0.60 mm (AQL +0.001 / -0.010)
Material: Solid Bare Copper
Nos. of Insulated Cores: 100
Diameter: 1.0 mm (AQL ±0.10)
Material: General PVC Insulation
Shield (1): Spiral PP Color Tape (Spiraled Each 10 Pairs)
Shield (2): Spiral Mylar Transparent Shield
Shield (3): Spiral Aluminium Foil Shield
Drain Wire: 1 Solid Bare Copper, Diameter 0.40 mm (AQL +0.001 / -0.008)
Overall Diameter: 12.1 mm (AQL ±0.20)
Material: Grey PVC Jacket with Rip-Cord
Conductor DC Resistance (20℃): ≤ 7.31 Ω / 100m
Insulation Resistance (20℃): ≥ 200 MΩ·m
Rated Temperature: 60℃
Rated Voltage: 30 V
