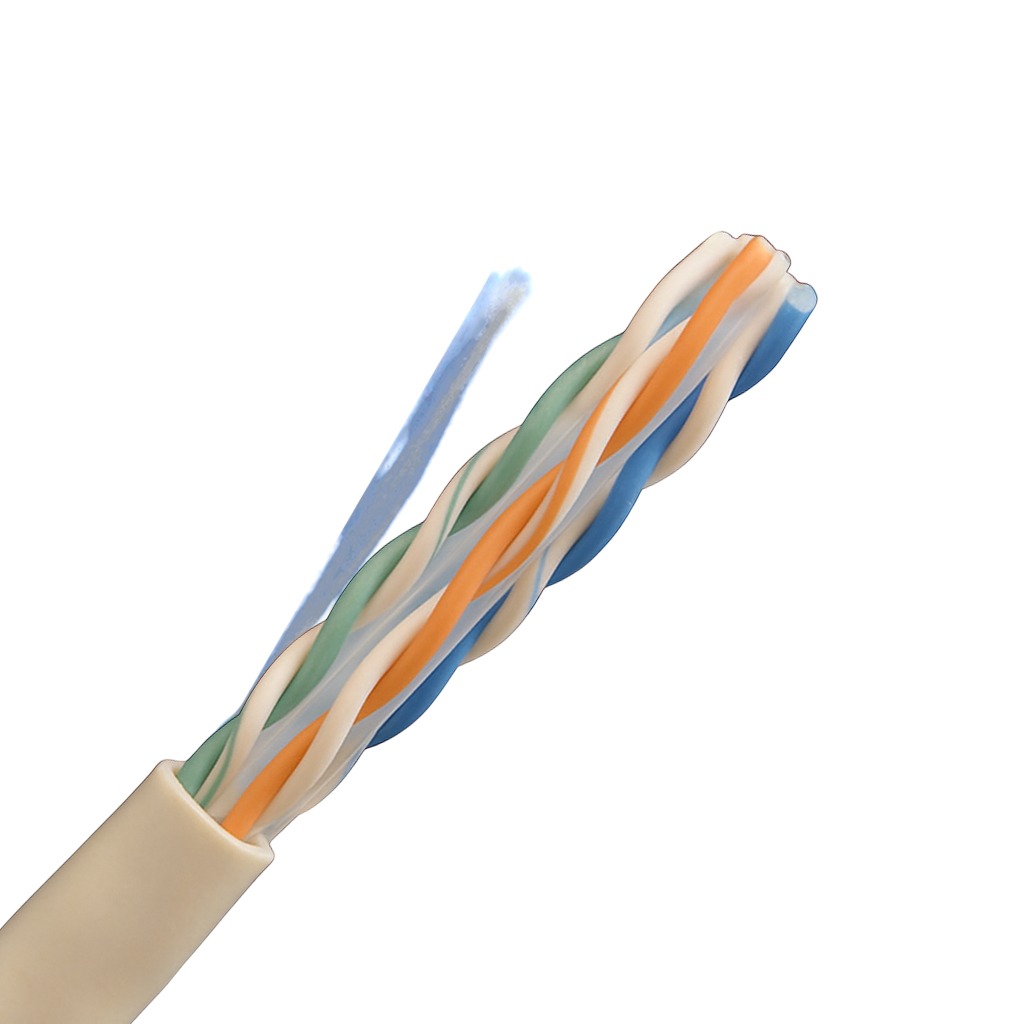

Pony 4 Pair U/utp Pvc 23 Awg Cat 6 Networking Cable 241061
₨ 73,395
Coil of 305 Meter
Short Description
- Copper 23AWG
- Two Twisted Wire
- HDPE Insulation
- Nylon Rip Cord
- Plastic Seperator
- Packaging 305 Meters
Shipping & Return
Cancellation Policy
- An order will instantly be canceled if the billing information is inaccurate or incomplete.
- If a customer doesn’t confirm his/her order within 48-hours of placement, the order will be marked as ‘discarded’.
- An order can only be canceled within 3 hours of placing the order.
Exchange Policy
- An item can only be exchanged in case of any defects with proof, within 2 days of delivery.
- An item will only be exchanged with an intact duplicate that doesn’t contain the same defects as the former.
- To exchange a purchased product, the customer will have to submit a request form with proof and details of the defected items and company will have full authority to decline the request depending upon the availability of the product.
Product Description
-
Conductor: 8 solid bare copper wires, diameter 0.55 mm ±0.005.
-
Insulation: 8 cores with 0.98 mm ±0.03 diameter, material HDPE.
-
Shield & Sheath: Thickness 0.55 mm ±0.05, outer diameter 6.0 mm ±0.4, PVC (RoHS compliant), clean and smooth surface.
-
Sheath Properties:
-
Before aging: Tensile ≥13.5 MPa, Elongation ≥150%.
-
After aging (100°C × 24hrs × 7d): Tensile ≥12.5 MPa, Elongation ≥125%.
-
Cold bend (-20°C × 24hrs): No visible cracks.
-
Electrical Characteristics (20°C):
-
Impedance: 100 ±15 Ω (1–250 MHz).
-
Delay Skew: ≤45 ns/100m (1–250 MHz).
-
DC Resistance: Max 9.38 Ω/100m.
-
Conductor Resistance Unbalance: Max 5%.
Conductor: 8 solid bare copper wires, diameter 0.55 mm ±0.005.
Insulation: 8 cores with 0.98 mm ±0.03 diameter, material HDPE.
Shield & Sheath: Thickness 0.55 mm ±0.05, outer diameter 6.0 mm ±0.4, PVC (RoHS compliant), clean and smooth surface.
Sheath Properties:
-
Before aging: Tensile ≥13.5 MPa, Elongation ≥150%.
-
After aging (100°C × 24hrs × 7d): Tensile ≥12.5 MPa, Elongation ≥125%.
-
Cold bend (-20°C × 24hrs): No visible cracks.
Electrical Characteristics (20°C):
-
Impedance: 100 ±15 Ω (1–250 MHz).
-
Delay Skew: ≤45 ns/100m (1–250 MHz).
-
DC Resistance: Max 9.38 Ω/100m.
-
Conductor Resistance Unbalance: Max 5%.
