1. All-in-One Public Address and Voice Alarm Control

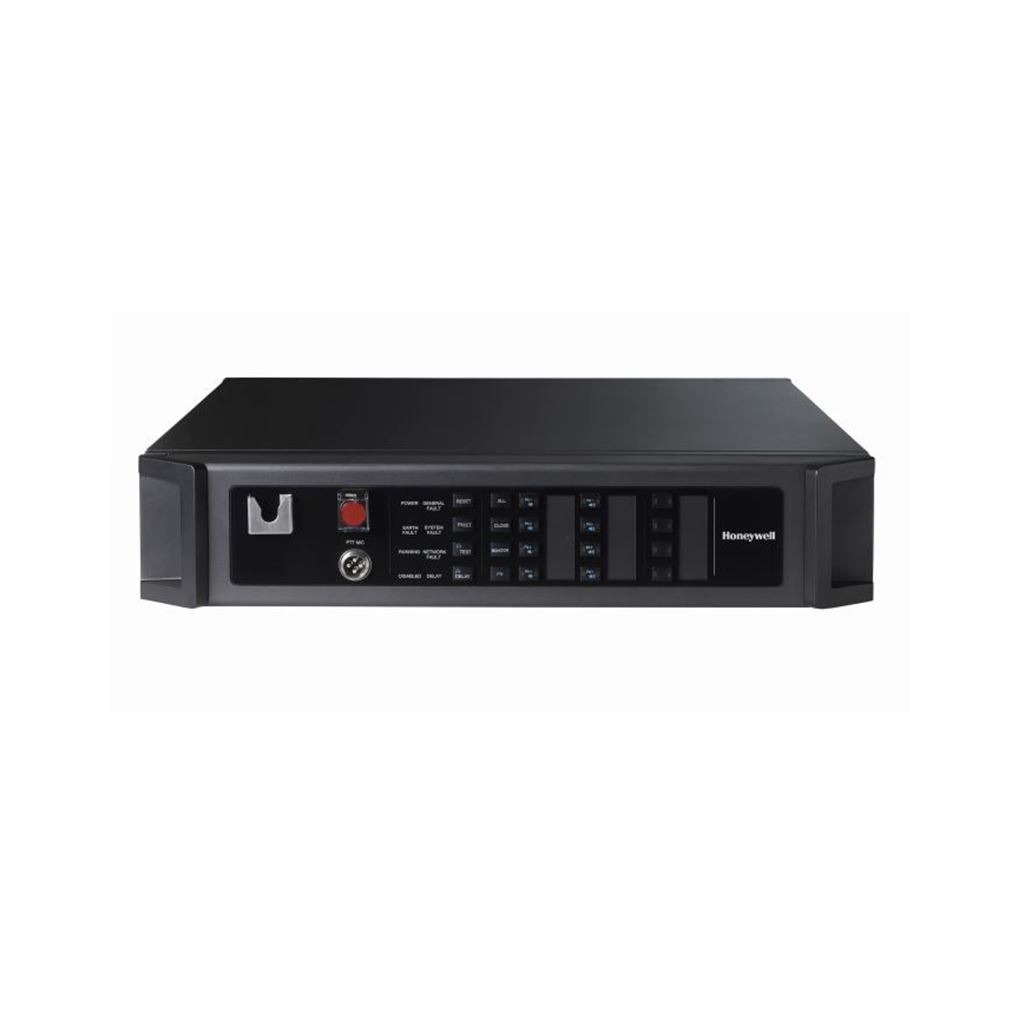

The X-DCS2000/EN is a central management unit that integrates audio broadcasting, zone control, emergency handling, and system monitoring. It serves as the core of the X-618 PA and Voice Alarm System, making it suitable for large buildings and public spaces that require reliable and centralized audio control.

2. Extensive Audio Input and Output Options

Equipped with 4 auxiliary inputs, 4 network audio inputs, and 4 AVC-enabled inputs (for automatic volume control with noise detectors), the system supports a wide range of audio sources. It also includes 8 loudspeaker line outputs and 8 dry-contact outputs to control connected zones and external devices, ensuring flexibility in design and installation.

3. Emergency Broadcasting and Fire Alarm Integration

In emergencies, the system can automatically broadcast evacuation messages triggered by 8 dry-contact inputs linked to fire alarm control panels. A dedicated red emergency button on the front panel allows quick manual activation of emergency mode, playing pre-recorded alerts and activating zone alarms with a single press.

4. Fault Detection and Redundancy for High Reliability

The DCS features built-in diagnostics that continuously monitor the power supply, amplifiers, communication, and loudspeaker lines. It supports amplifier and power redundancy (e.g., 1:1 or 2:1 backup configurations), ensuring uninterrupted operation even during hardware failures, making it ideal for life-safety applications.

5. User-Friendly Control and Monitoring

With clear control buttons for zone and source selection, volume adjustment, and emergency mode, the DCS is easy to operate. Indicator lights provide real-time feedback on device status. A built-in monitor speaker allows local checking of zone and source audio, enhancing operational efficiency.

6. Scalable and Network-Ready

Designed for expansion, the DCS includes four 10/100M Ethernet ports for connecting with other devices and expanding zones across a network. Combined with the X-SMART software, users can configure, monitor, and control large-scale systems from a central location.
