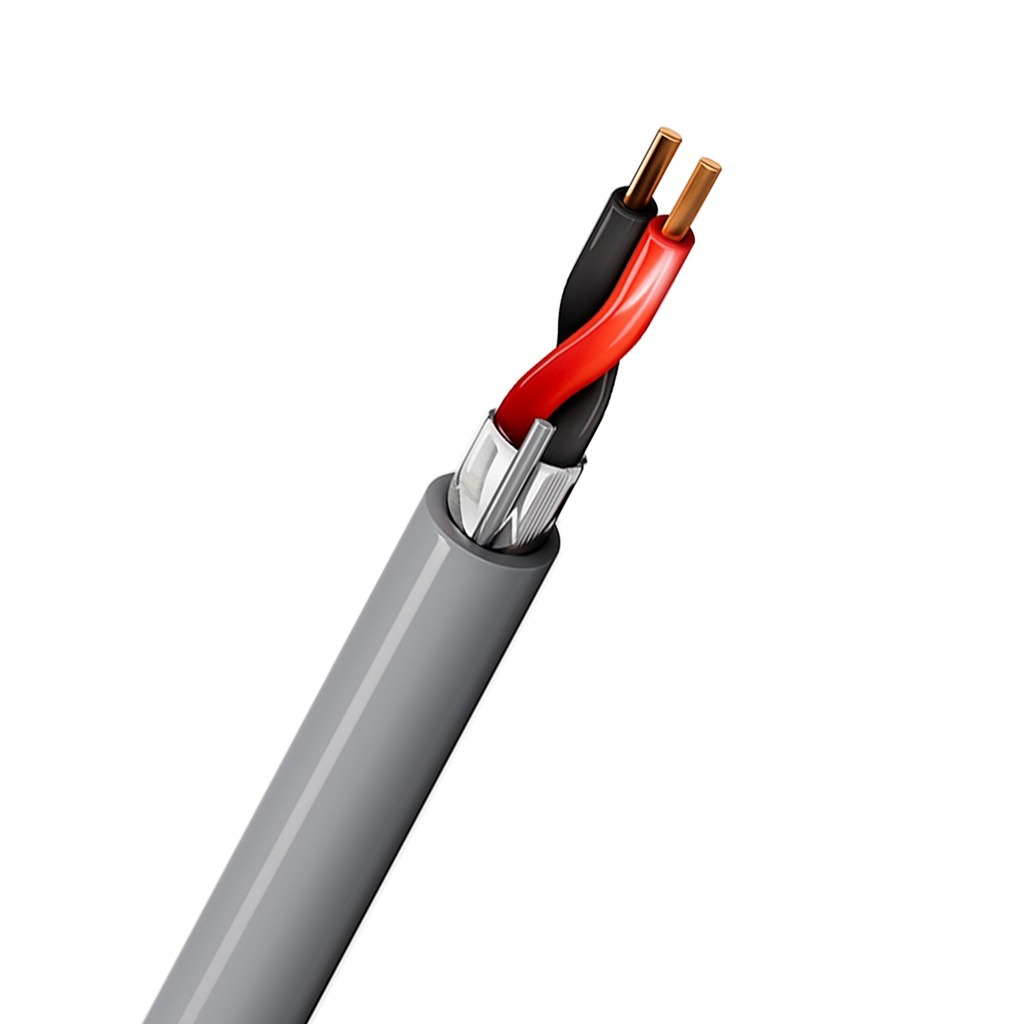

Belden Security & Sound, 2 Conductor 16 AWG, BC, Shielded, CMR 5200FE
₨ 483
Per meter
Short Description
- 2×16 AWG Bare Copper
- Stranded (19×29)
- PP Insulation, Black/Red
- Alum+Poly Shield, 24 AWG Drainwire
- PVC Jacket Ø0.188 in with Ripcord
- Length: 1000 ft Roll
Shipping & Return
Cancellation Policy
- An order will instantly be canceled if the billing information is inaccurate or incomplete.
- If a customer doesn’t confirm his/her order within 48-hours of placement, the order will be marked as ‘discarded’.
- An order can only be canceled within 3 hours of placing the order.
Exchange Policy
- An item can only be exchanged in case of any defects with proof, within 2 days of delivery.
- An item will only be exchanged with an intact duplicate that doesn’t contain the same defects as the former.
- To exchange a purchased product, the customer will have to submit a request form with proof and details of the defected items and company will have full authority to decline the request depending upon the availability of the product.
Product Description
-
Conductor: 2 × 16 AWG, 19×29 Stranded Bare Copper
-
Insulation: Polypropylene, Thickness 0.008 in, Colors: Black, Red
-
Shield: Bi-Laminate (Alum+Poly) Tape, 100% Coverage, 24 AWG (7×32) TC Drainwire
-
Outer Jacket: PVC, Thickness 0.017 in, Nominal Dia. 0.188 in, Ripcord: Yes
-
Cable Diameter: 0.188 in (Nominal)
-
Electrical Characteristics (20°C):
-
Conductor DCR: 4 Ω/1000 ft
-
Capacitance: 58 pF/ft (Cond-Cond), 114 pF/ft (Cond-Other + Shield)
-
Current Rating: 6.25 A per conductor at 25°C
-
Shield DCR: 14.4 Ω/1000 ft
-
Voltage Rating: 300 V (UL)
-
Temperature Rating: -20°C to +75°C, UL Operating 75°C
-
Bend Radius: Stationary 2.0 in, Installation 1.9 in
-
Max Pull Tension: 85.5 lbs
-
Weight: 24 lbs/1000 ft
-
Compliance: UL1666, FT4, IEC 60332-1-2, NEC Article 800 CMR, CEC CMG, CPR Euroclass Eca, CE, RoHS II, WEEE, China RoHS II
Conductor: 2 × 16 AWG, 19×29 Stranded Bare Copper
Insulation: Polypropylene, Thickness 0.008 in, Colors: Black, Red
Shield: Bi-Laminate (Alum+Poly) Tape, 100% Coverage, 24 AWG (7×32) TC Drainwire
Outer Jacket: PVC, Thickness 0.017 in, Nominal Dia. 0.188 in, Ripcord: Yes
Cable Diameter: 0.188 in (Nominal)
Electrical Characteristics (20°C):
-
Conductor DCR: 4 Ω/1000 ft
-
Capacitance: 58 pF/ft (Cond-Cond), 114 pF/ft (Cond-Other + Shield)
-
Current Rating: 6.25 A per conductor at 25°C
-
Shield DCR: 14.4 Ω/1000 ft
Voltage Rating: 300 V (UL)
Temperature Rating: -20°C to +75°C, UL Operating 75°C
Bend Radius: Stationary 2.0 in, Installation 1.9 in
Max Pull Tension: 85.5 lbs
Weight: 24 lbs/1000 ft
Compliance: UL1666, FT4, IEC 60332-1-2, NEC Article 800 CMR, CEC CMG, CPR Euroclass Eca, CE, RoHS II, WEEE, China RoHS II
