Belden Multi-Conductor – Commercial Audio Systems – 2 Conductors Cabled 22 AWG 5500FE
₨ 226
Per meter
Short Description
- 22 AWG 2-Conductor Shielded Audio Cable for intercom and sound systems
- Stranded bare copper with polypropylene insulation
- Beldfoil® shield and drain wire for noise protection
- Durable PVC jacket with ripcord and footage marking
- Rated 300V / 75°C, UL1666, FT4, CMR/CMG, CE, RoHS compliant
Shipping & Return
Cancellation Policy
- An order will instantly be canceled if the billing information is inaccurate or incomplete.
- If a customer doesn’t confirm his/her order within 48-hours of placement, the order will be marked as ‘discarded’.
- An order can only be canceled within 3 hours of placing the order.
Exchange Policy
- An item can only be exchanged in case of any defects with proof, within 2 days of delivery.
- An item will only be exchanged with an intact duplicate that doesn’t contain the same defects as the former.
- To exchange a purchased product, the customer will have to submit a request form with proof and details of the defected items and company will have full authority to decline the request depending upon the availability of the product.
Product Description
-

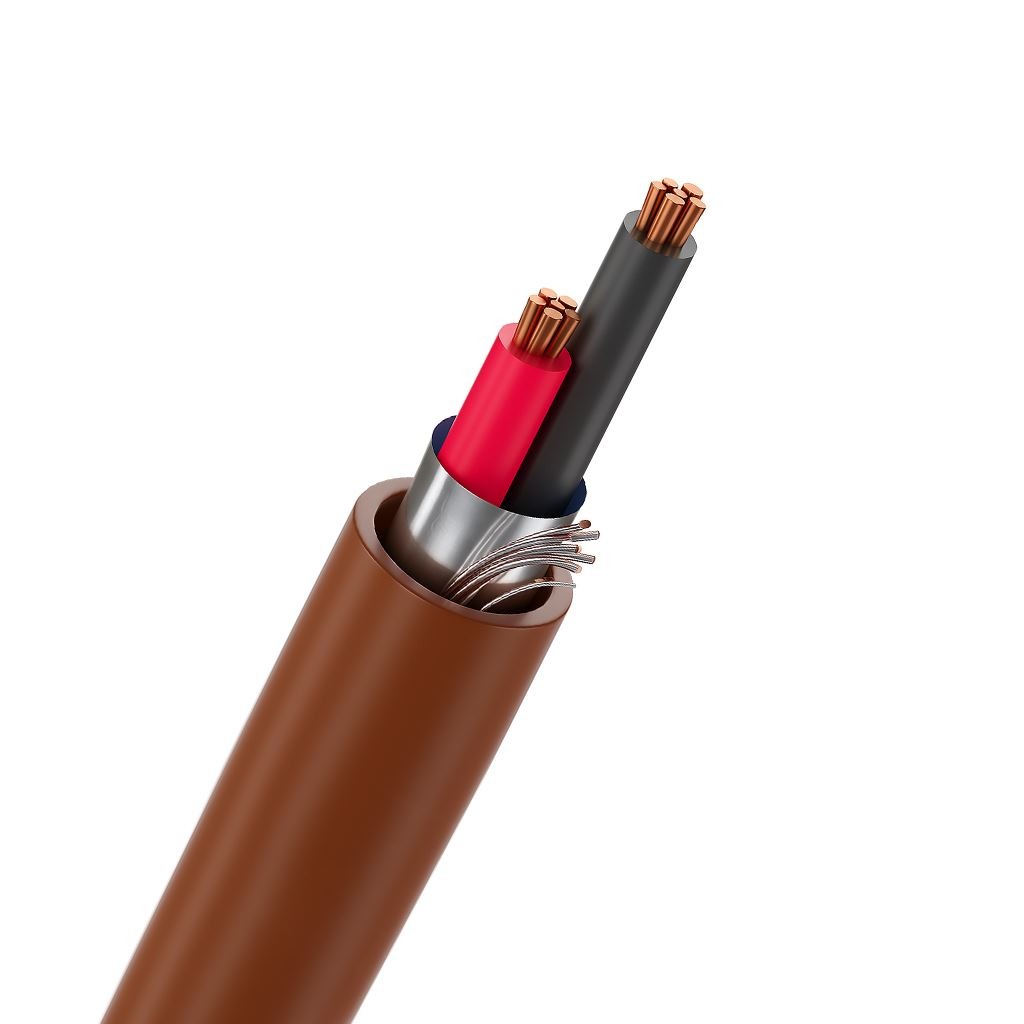

Premium Shielded Audio Cable: Constructed with two 22 AWG (7x30) stranded bare copper conductors, this cable delivers clear and consistent signal transmission for intercom, PA, and sound system applications.
-
High-Quality Insulation & Shielding: Each conductor is insulated with polypropylene (0.007 in) and color-coded black and red. The Beldfoil® aluminum/polyester shield (foil side out) provides 100% coverage, minimizing interference and maintaining signal integrity.
-
Enhanced Protection & Convenience: Includes a 24 AWG tinned copper drain wire (7x32) for grounding and a PVC jacket (0.017 in wall) with ripcord and sequential footage marking every two feet for effortless installation.
-
Reliable Electrical Performance: Offers low conductor resistance (16.1 Ω/1000 ft), capacitance of 38 pF/ft (cond-to-cond), and supports up to 2.8A per conductor @25°C, ensuring stable audio performance.
-
Certified for Safety & Compliance: Rated 300V RMS, -20°C to +75°C, meeting UL1666 (Vertical Shaft), FT4, NEC Article 800 (CMR), CEC CMG, CE, RoHS, and China RoHS requirements for environmentally safe and compliant installations.
Premium Shielded Audio Cable: Constructed with two 22 AWG (7x30) stranded bare copper conductors, this cable delivers clear and consistent signal transmission for intercom, PA, and sound system applications.
High-Quality Insulation & Shielding: Each conductor is insulated with polypropylene (0.007 in) and color-coded black and red. The Beldfoil® aluminum/polyester shield (foil side out) provides 100% coverage, minimizing interference and maintaining signal integrity.
Enhanced Protection & Convenience: Includes a 24 AWG tinned copper drain wire (7x32) for grounding and a PVC jacket (0.017 in wall) with ripcord and sequential footage marking every two feet for effortless installation.
Reliable Electrical Performance: Offers low conductor resistance (16.1 Ω/1000 ft), capacitance of 38 pF/ft (cond-to-cond), and supports up to 2.8A per conductor @25°C, ensuring stable audio performance.
Certified for Safety & Compliance: Rated 300V RMS, -20°C to +75°C, meeting UL1666 (Vertical Shaft), FT4, NEC Article 800 (CMR), CEC CMG, CE, RoHS, and China RoHS requirements for environmentally safe and compliant installations.
