• Product Overview

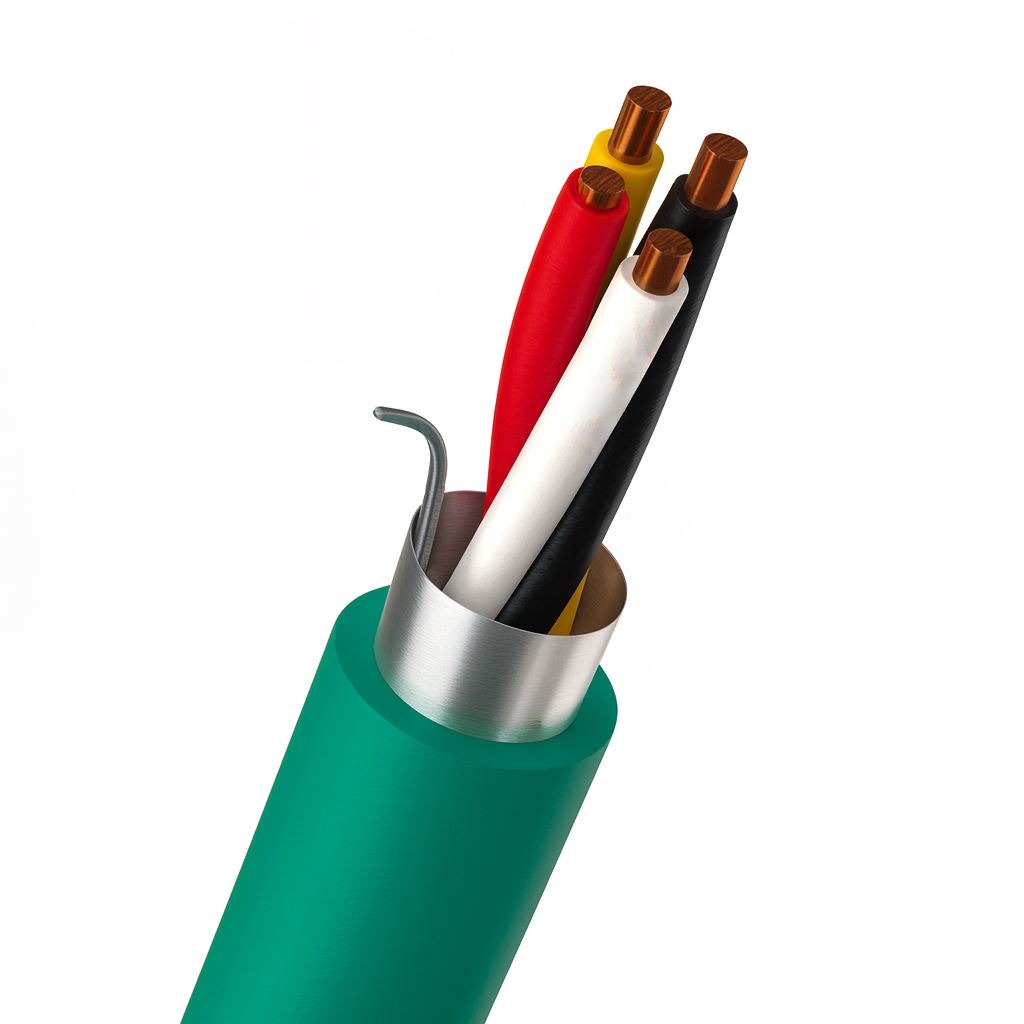

  Security & Commercial Audio Cable (Model: 5541FE), designed for intercom, PA systems, and sound/audio circuits, providing strong signal clarity and protection from interference in indoor riser installations.

• Construction Details

  • Conductors: 2 pairs of 22 AWG (7x30) stranded bare copper conductors.

  • Insulation: Polypropylene (PP) insulation for flexibility and dielectric strength.

  • Shielding: Overall Beldfoil® aluminum/polyester shield (100% coverage, foil side out) with a 24 AWG tinned copper drain wire for superior EMI/RFI rejection.

  • Jacket: PVC outer jacket with 0.017 in wall thickness and ripcord for fast and clean stripping.

  • Color Code (Pairs):

    1. Black & Red

    2. Black & White

  • Overall Diameter: 0.189 in

• Electrical Characteristics

  • Capacitance (Cond-to-Cond): 26 pF/ft

  • Capacitance (Cond-to-Shield): 47 pF/ft

  • Conductor Resistance: 16.3 Ω/1000 ft

  • Shield Resistance: 13.9 Ω/1000 ft

  • Operating Voltage: 300 V RMS

  • Current Rating: 2.2 A per conductor @ 25°C

• Mechanical & Thermal Performance

  • Operating Temperature: -20°C to +75°C

  • Bulk Cable Weight: 19.5 lbs/1000 ft

  • Max Pull Tension: 41.9 lbs

  • Min Bend Radius: 1.9 in

• Compliance & Approvals

  • Flame Tests: UL1666 Vertical Shaft, CSA FT4

  • Standards: NEC Article 800 (CMR), CEC CMG

  • Environmental: CE, RoHS, ELV, WEEE, BFR, China RoHS (MII Order #39), CA Prop 65

  • Plenum Status: Non-Plenum

  • Plenum Number: 6541FE
