Short Description

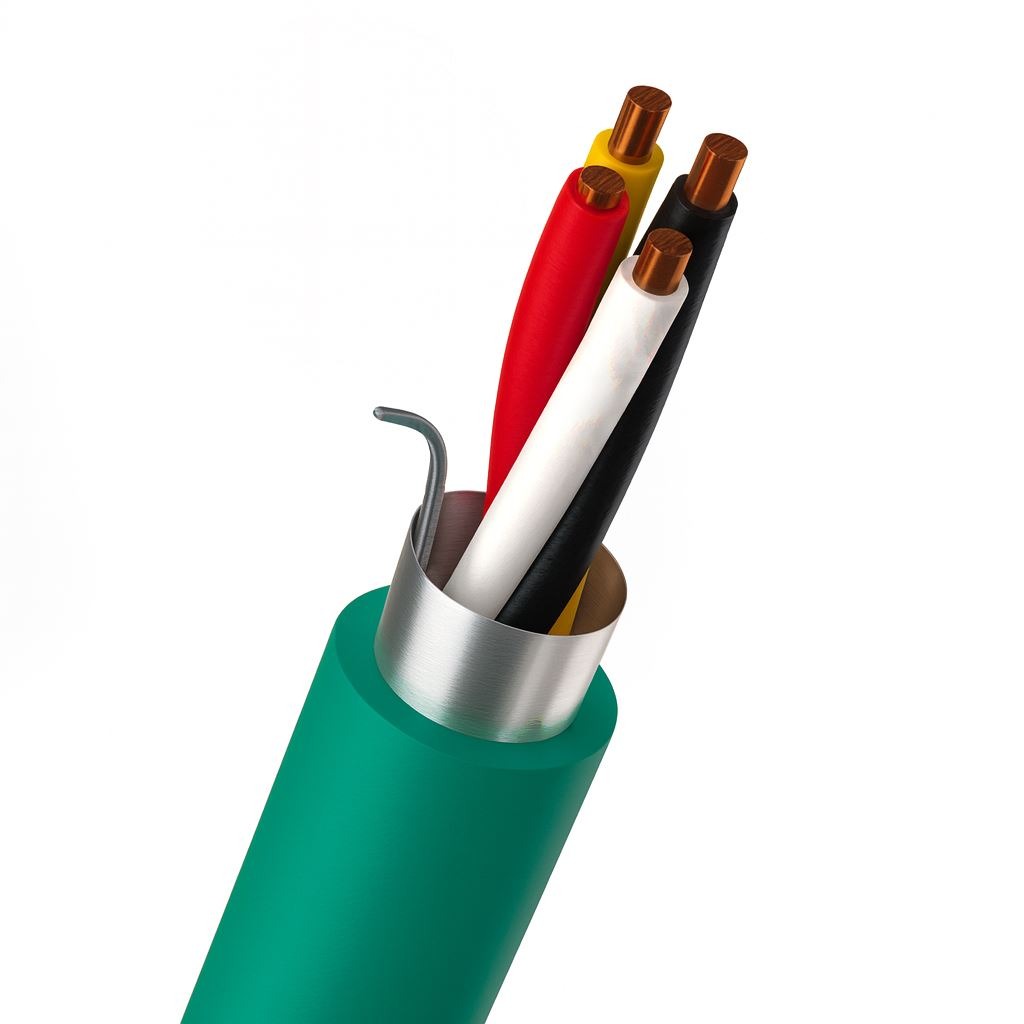

- EIB 4×0.8B cable for KNX building automation systems
- 4 solid bare copper conductors with PVC insulation
- Aluminum/polyester Beldfoil® shield for noise protection
- Green PVC jacket for durable indoor installation
Shipping & Return
Cancellation Policy
- An order will instantly be canceled if the billing information is inaccurate or incomplete.
- If a customer doesn’t confirm his/her order within 48-hours of placement, the order will be marked as ‘discarded’.
- An order can only be canceled within 3 hours of placing the order.
Exchange Policy
- An item can only be exchanged in case of any defects with proof, within 2 days of delivery.
- An item will only be exchanged with an intact duplicate that doesn’t contain the same defects as the former.
- To exchange a purchased product, the customer will have to submit a request form with proof and details of the defected items and company will have full authority to decline the request depending upon the availability of the product.
Product Description
-
Premium Construction: Equipped with four 0.8 mm solid bare copper conductors (0.5 mm² each) providing reliable signal transmission and long-term system stability in fixed installations.
-
Quad Configuration: Consists of one quad (white, red, yellow, black) insulated with high-quality PVC for easy identification and accurate wiring during installation.
-
Full Shield Protection: Aluminum/polyester Beldfoil® shield with 100% coverage and 0.4 mm tinned copper drain wire ensures superior protection against electromagnetic interference (EMI).
-
Durable Outer Sheath: Robust green PVC jacket (RAL 6017) with 6.1 mm nominal diameter and 1.2 mm wall thickness provides strong mechanical protection and flexibility.
-
Excellent Electrical Performance: Offers low conductor resistance (max. 37.5 Ω/km) and nominal capacitance of 50 pF/m for efficient and distortion-free data communication.
-
Certified and Safe: Complies with Euroclass Eca, KNX REG 109/7253/05, RoHS, and IEC 60332-1-2 flame standards—ensuring safety, reliability, and performance in building automation environments.
Premium Construction: Equipped with four 0.8 mm solid bare copper conductors (0.5 mm² each) providing reliable signal transmission and long-term system stability in fixed installations.
Quad Configuration: Consists of one quad (white, red, yellow, black) insulated with high-quality PVC for easy identification and accurate wiring during installation.
Full Shield Protection: Aluminum/polyester Beldfoil® shield with 100% coverage and 0.4 mm tinned copper drain wire ensures superior protection against electromagnetic interference (EMI).
Durable Outer Sheath: Robust green PVC jacket (RAL 6017) with 6.1 mm nominal diameter and 1.2 mm wall thickness provides strong mechanical protection and flexibility.
Excellent Electrical Performance: Offers low conductor resistance (max. 37.5 Ω/km) and nominal capacitance of 50 pF/m for efficient and distortion-free data communication.
Certified and Safe: Complies with Euroclass Eca, KNX REG 109/7253/05, RoHS, and IEC 60332-1-2 flame standards—ensuring safety, reliability, and performance in building automation environments.
