Short Description

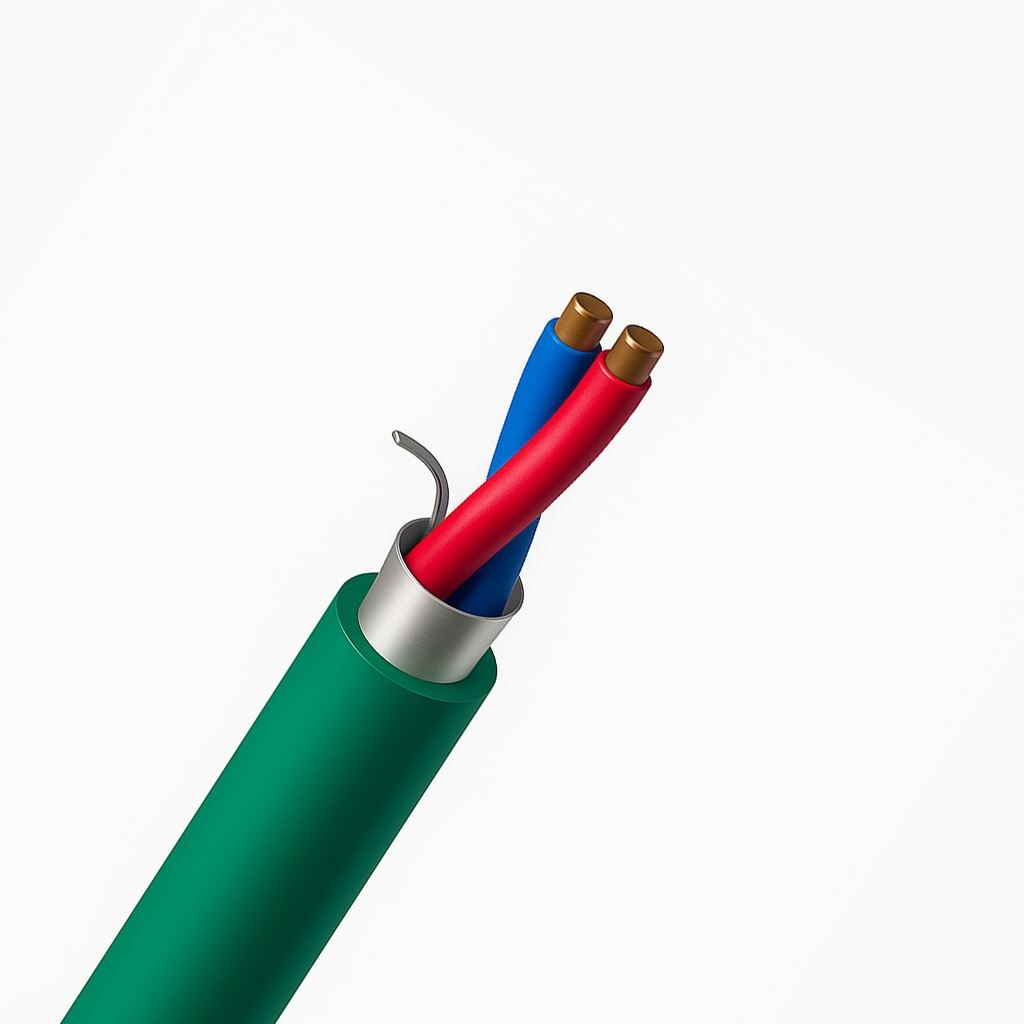

- EIB 2×0.8B PVC FS PVC cable for building management systems
- 2 solid bare copper conductors with PVC insulation
- Aluminum/polyester foil shielding for signal reliability
- Green PVC jacket for durable indoor use
Shipping & Return
Cancellation Policy
- An order will instantly be canceled if the billing information is inaccurate or incomplete.
- If a customer doesn’t confirm his/her order within 48-hours of placement, the order will be marked as ‘discarded’.
- An order can only be canceled within 3 hours of placing the order.
Exchange Policy
- An item can only be exchanged in case of any defects with proof, within 2 days of delivery.
- An item will only be exchanged with an intact duplicate that doesn’t contain the same defects as the former.
- To exchange a purchased product, the customer will have to submit a request form with proof and details of the defected items and company will have full authority to decline the request depending upon the availability of the product.
Product Description
-
High-Quality Construction: Features two 0.8 mm solid bare copper conductors (0.5 mm² each) for stable data transmission and long-term durability in fixed building installations.
-
Durable Insulation: Each conductor is PVC-insulated (1.4 mm OD) with red and blue color coding for easy identification and wiring accuracy.
-
Enhanced Shielding: Includes a 100% coverage Beldfoil® aluminum/polyester foil shield with a 0.4 mm tinned copper drain wire to minimize electromagnetic interference.
-
Protective Outer Jacket: Encased in a robust green PVC jacket (RAL 6017) with a nominal diameter of 5.5 mm, ensuring mechanical protection and flexibility during installation.
-
Reliable Electrical Performance: Offers a nominal capacitance of 50 pF/m and maximum conductor resistance of 37.5 Ω/km for efficient signal communication in KNX/EIB systems.
-
Compliant and Safe: Rated Euroclass Eca under CPR, flame-tested to IEC 60332-1-2, and compliant with KNX REG 109/7253/05 standards for building management applications.
High-Quality Construction: Features two 0.8 mm solid bare copper conductors (0.5 mm² each) for stable data transmission and long-term durability in fixed building installations.
Durable Insulation: Each conductor is PVC-insulated (1.4 mm OD) with red and blue color coding for easy identification and wiring accuracy.
Enhanced Shielding: Includes a 100% coverage Beldfoil® aluminum/polyester foil shield with a 0.4 mm tinned copper drain wire to minimize electromagnetic interference.
Protective Outer Jacket: Encased in a robust green PVC jacket (RAL 6017) with a nominal diameter of 5.5 mm, ensuring mechanical protection and flexibility during installation.
Reliable Electrical Performance: Offers a nominal capacitance of 50 pF/m and maximum conductor resistance of 37.5 Ω/km for efficient signal communication in KNX/EIB systems.
Compliant and Safe: Rated Euroclass Eca under CPR, flame-tested to IEC 60332-1-2, and compliant with KNX REG 109/7253/05 standards for building management applications.
